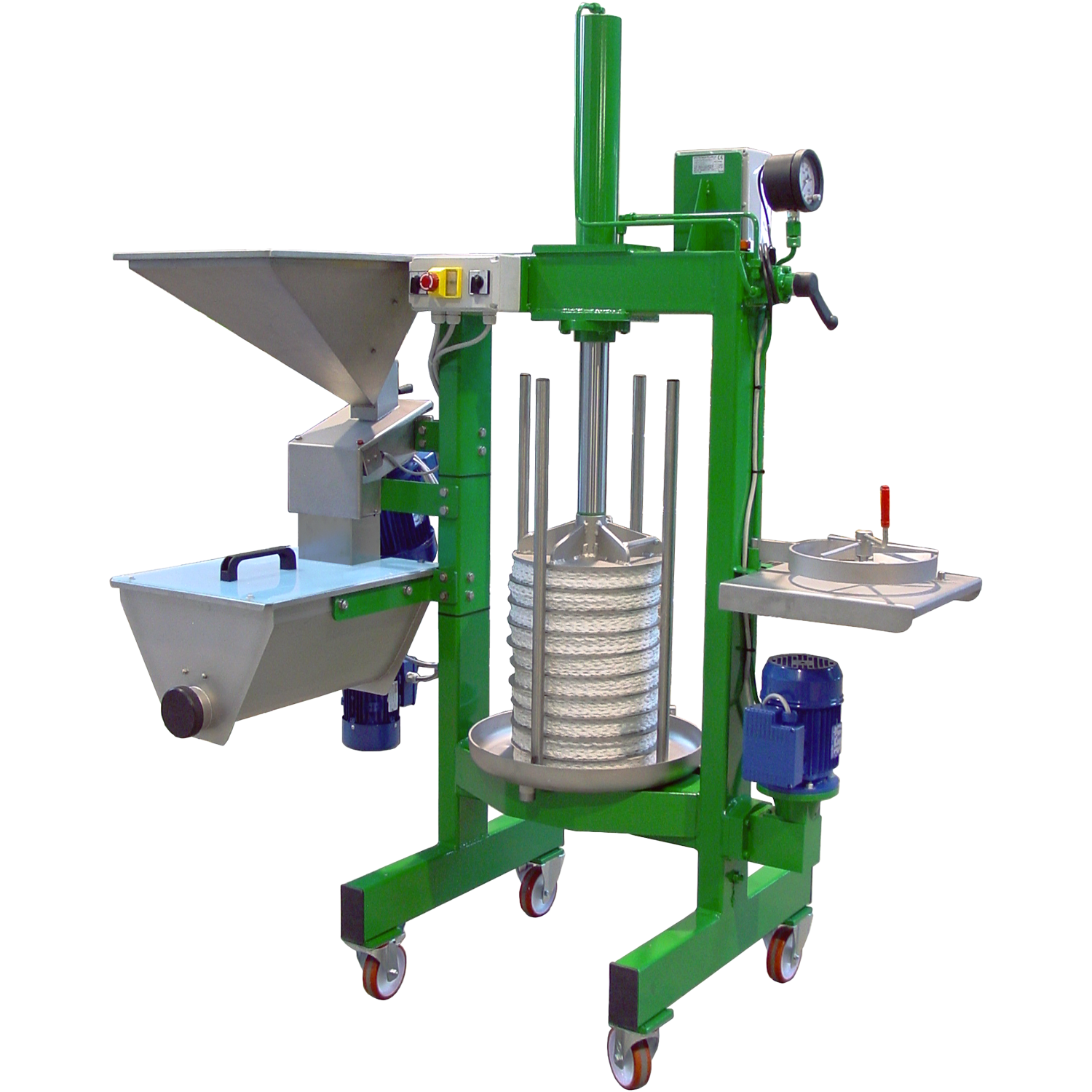

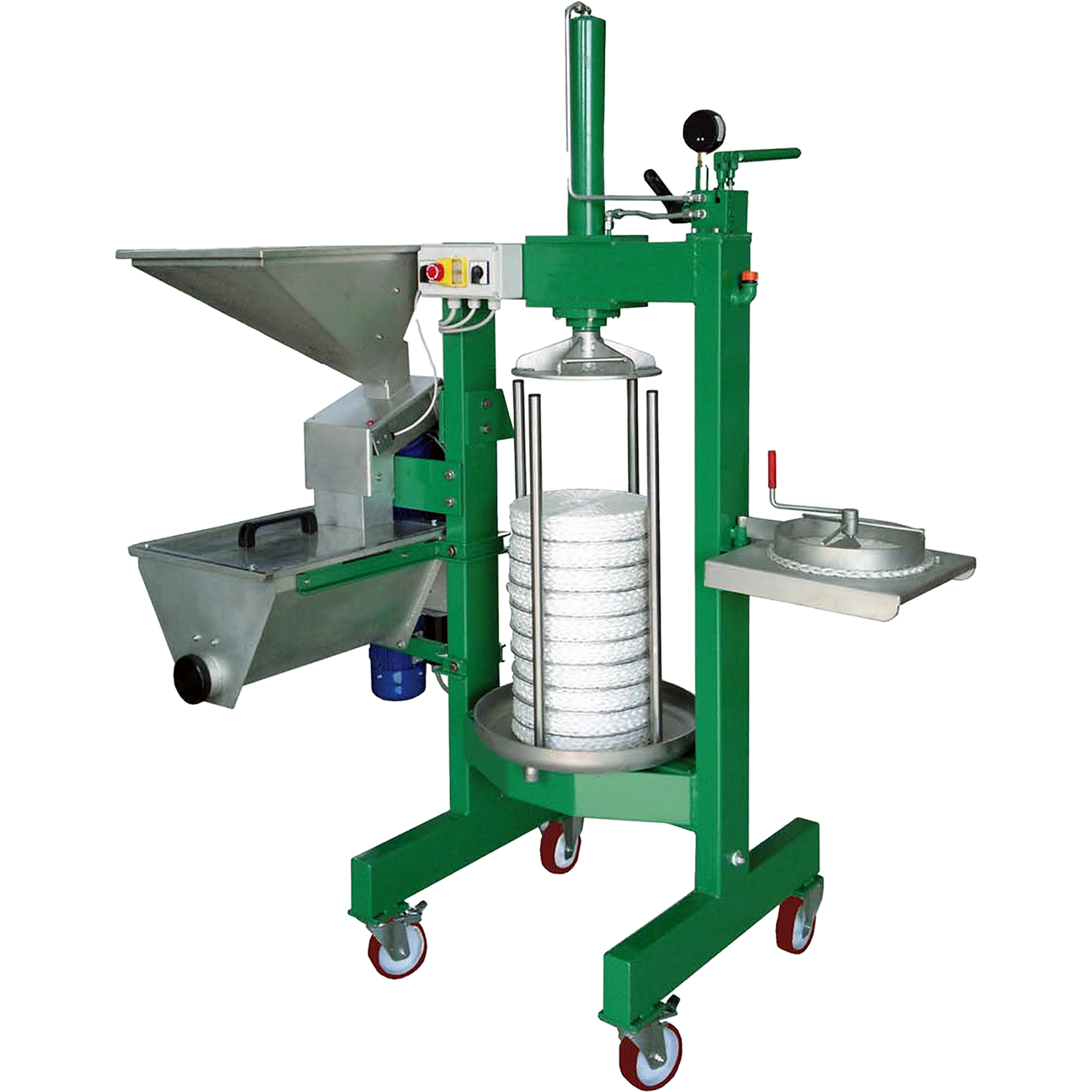

The OLIO 30 Combo by Zambelli consists of an olive crusher mill, kneading tank with dispenser, and hydraulic press; and is capable of processing 66 lbs (30 kg) of olives per hour. With its compact footprint and efficient layout, it is the perfect all-in-one machine for boutique olive oil producers.
The mill, tank, and dispenser are constructed entirely of AISI 304 stainless-steel. The press plate, basin, and guide rails are also made of AISI 304 stainless-steel. The press frame is made of tubular steel coated in a hardened enamel paint. The press is supplied with 50 nylon diaphragms and 9 separation discs made of AISI 304. The hydraulic press itself is either operated manually (similar to a Hydraulic Head Basket Press) or is available with an electric motor.
The OLIO 30 Combo includes:
- Motorized Mill
- Motorized Tank & Dispenser
- Hydraulic Press (available as either manual hydraulic or motorized)
CLICK HERE to see the OLIO 30 Combo in operation.
DETAILS
DETAILS
- Hourly Production: 66 lb (30 Kg) of olives
- 3-Station Combination: Kneading Hopper, Crushing Mill, & Hydraulic Press

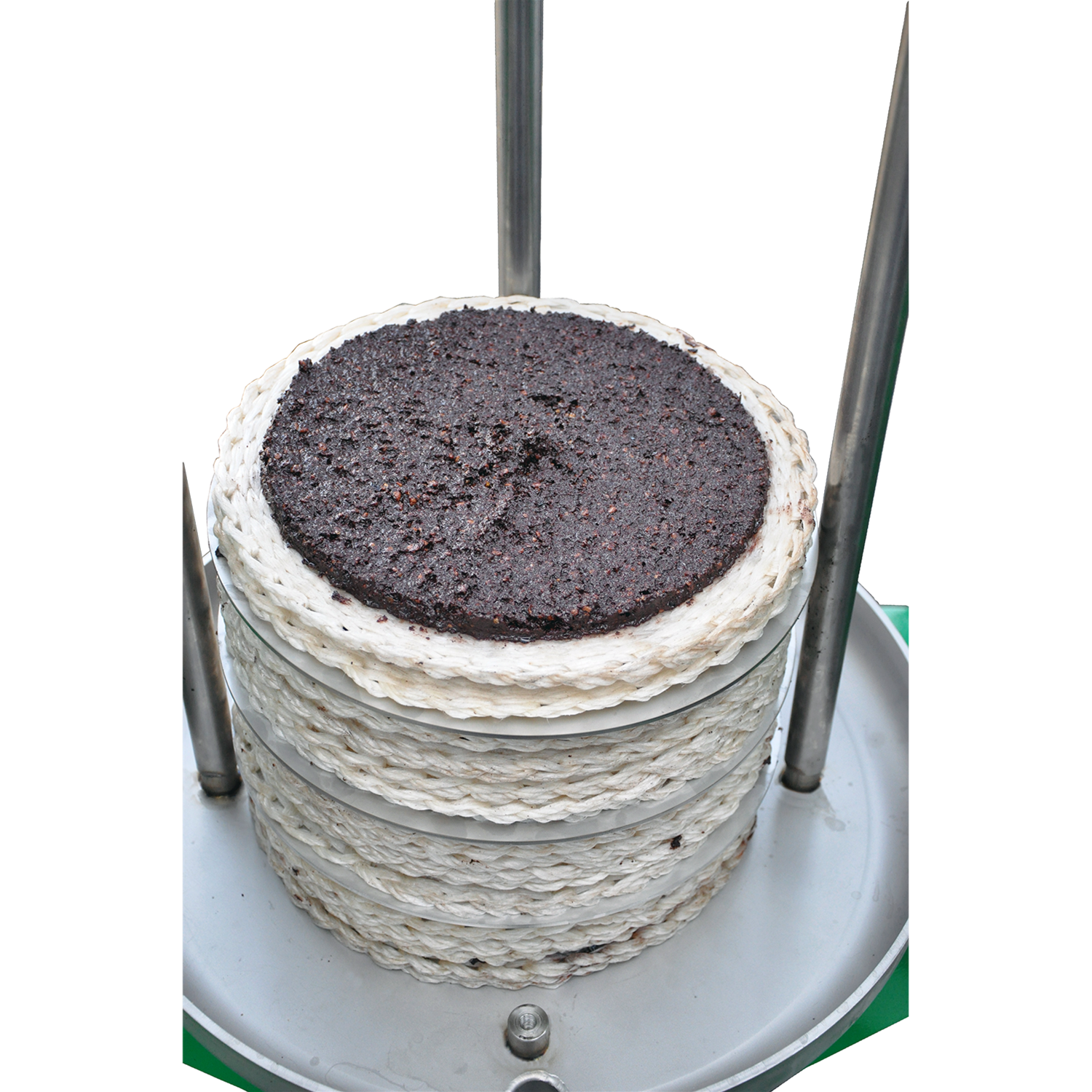

- 50 Nylon Pressing Diaphragms (Ø 300mm)
- 9 Stainless-steel Discs (Ø 300mm)
- 350 Bar maximum operating pressure (press)
- OPTIONAL Electric motor for press (1-Ph, 240v, 60Hz, 1kW) - see dropdown menu
- Hopper Motor: 1-Ph, 240v, 60Hz, 0.55kW
- Mill Motor: 1-Ph, 240v, 60Hz, 2.2kW
- Dimensions: 60" L x 40" W x 82" H
- 450 lb Transport Weight
- Made in Italy by Zambelli
CALL TO ORDER
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY
We will call and/or email with actual shipping and crating costs prior finalizing your order.
