The Zambelli "MACH" Mill for cold oil production features, and infeed hopper with auger, crushing rollers, kneading drum with helical paddles that ensure that the fluids don't separate, and doser with motorized rotating platform to evenly spread the paste on pressing diaphragms.
Available in two sizes: MACH 1 (100 Kg/Hr) and MACH 2 (150 Kg/Hr).

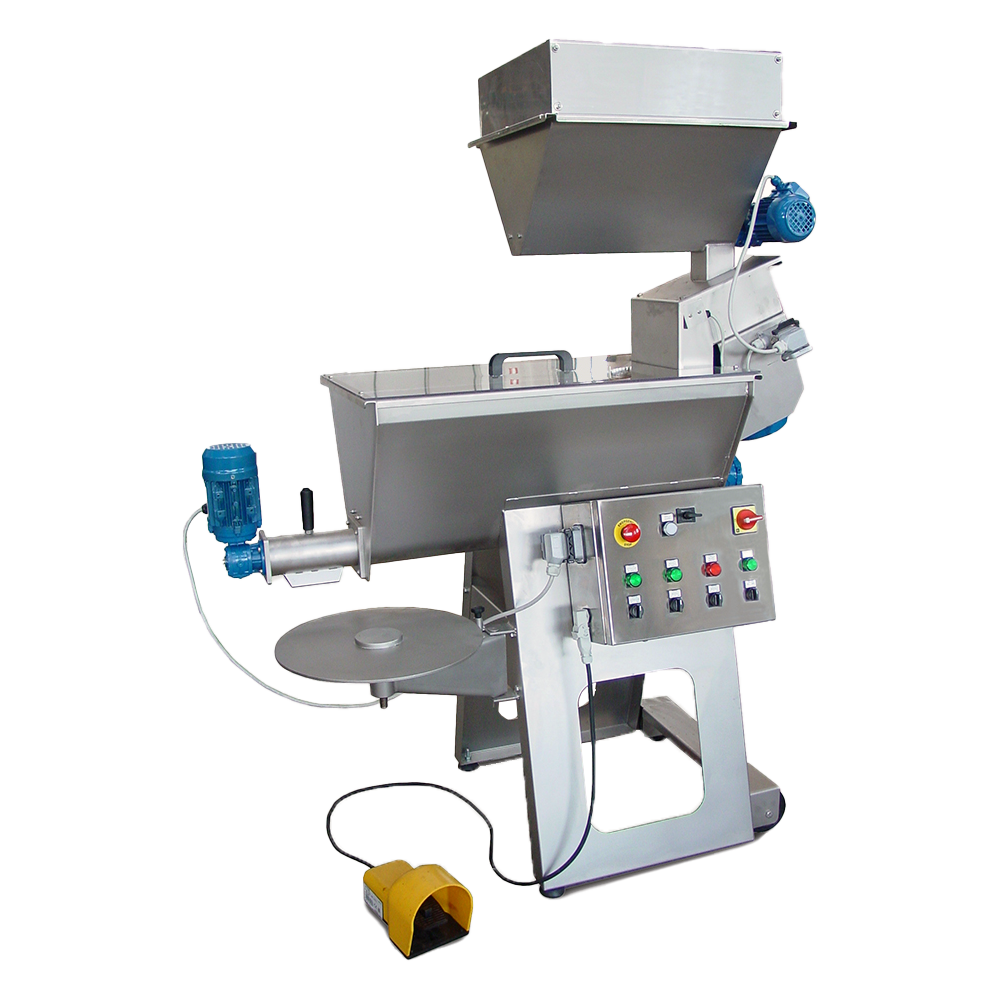

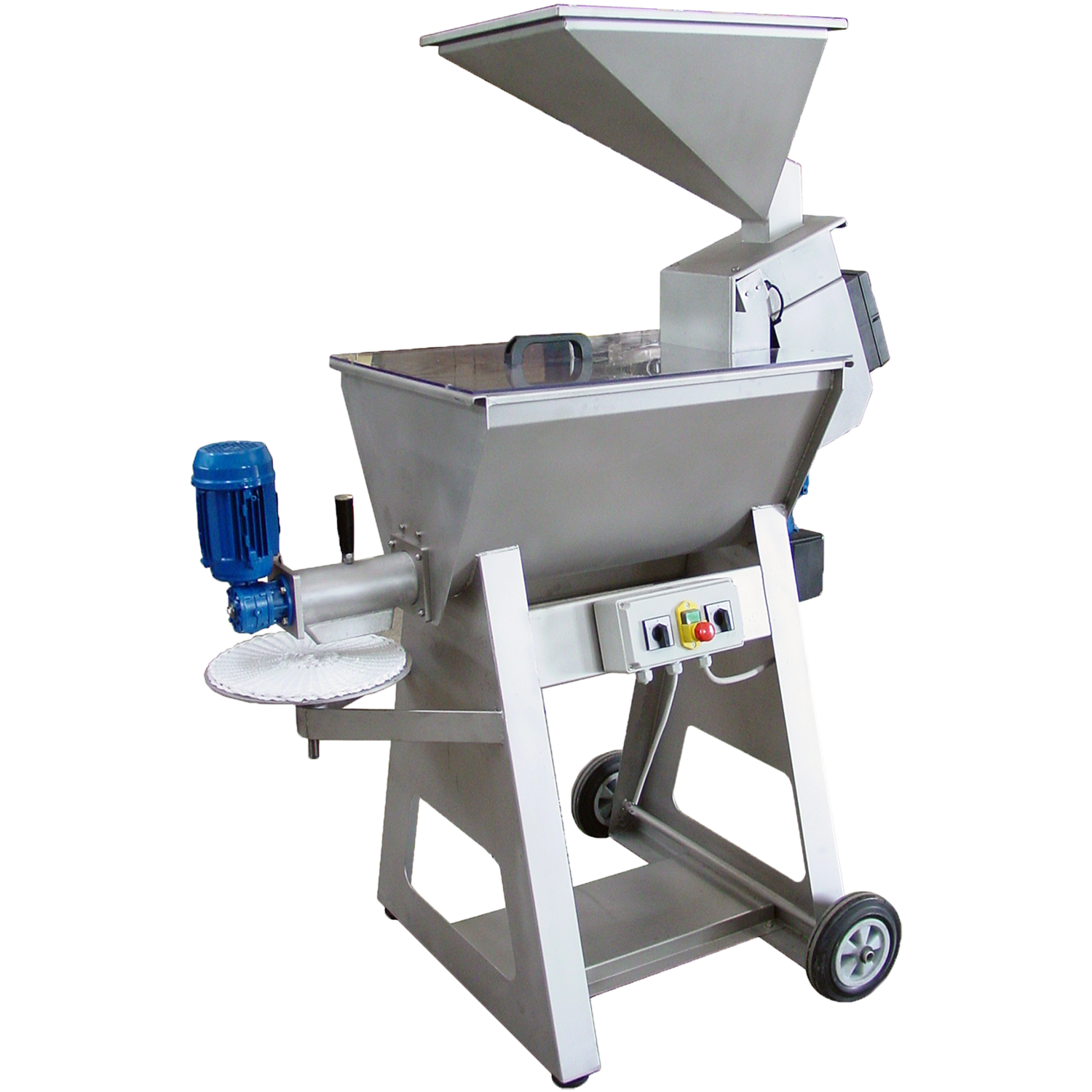

The MACH 1 features independent control of the crusher & mixer and the doser. The MACH 2 allows for independent variable speed control of the in-feed auger, crusher, mixer, and doser, in addition to a foot pedal to control the rotation of the diaphragm plate.
CLICK HERE to see the Olio Mach Mill and Aton Oil Press in operation.
DETAILS
DETAILS
- Maximum Hourly Production: 175 - 220 lbs (MACH 1), 265 - 330 lbs (MACH 2)
- AISI 304 Stainless-Steel Construction
- IPX6 Waterproof Control Box
- Independent control of infeed auger, mill, mixing drum, and doser
- 60Hz, 1-Phase, 220v Power
- Made in Italy by Zambelli
| MACH 1 MILL | MACH 2 MILL | |
| PRODUCTION: |
175 - 220 lb (80 - 100 kg) | 265 - 330 lb (120 - 150 kg) |
| MOTORS (1-Ph, 60Hz, 220v) Mill: Mixer: Doser: |
2.5 HP (2.2 KW) 0.75 HP (0.55 KW) 0.16 HP (0.12 KW) |
2.5 HP (2.2 KW) 0.75 HP (0.55 KW) 0.16 HP (0.12 KW) |
| TOTAL DIMENSIONS Length: Width: Height: |
55 in (1400 mm)
34 in (850 mm)
65 in (1650 mm)
|
60 in (1500 mm)
34 in (850 mm)
70 in (1750 mm)
|
| WEIGHT: | 220 lb (100 kg) | 330 lb (150 kg) |
CALL TO ORDER
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY
We will call and/or email with actual shipping and crating costs prior finalizing your order.
